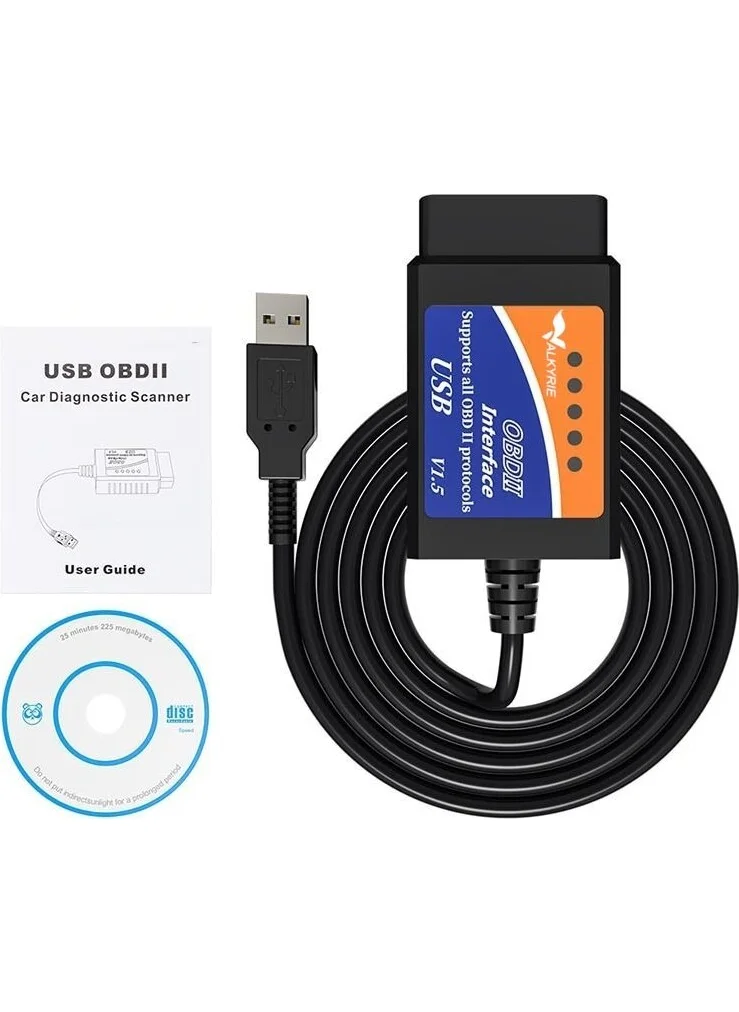

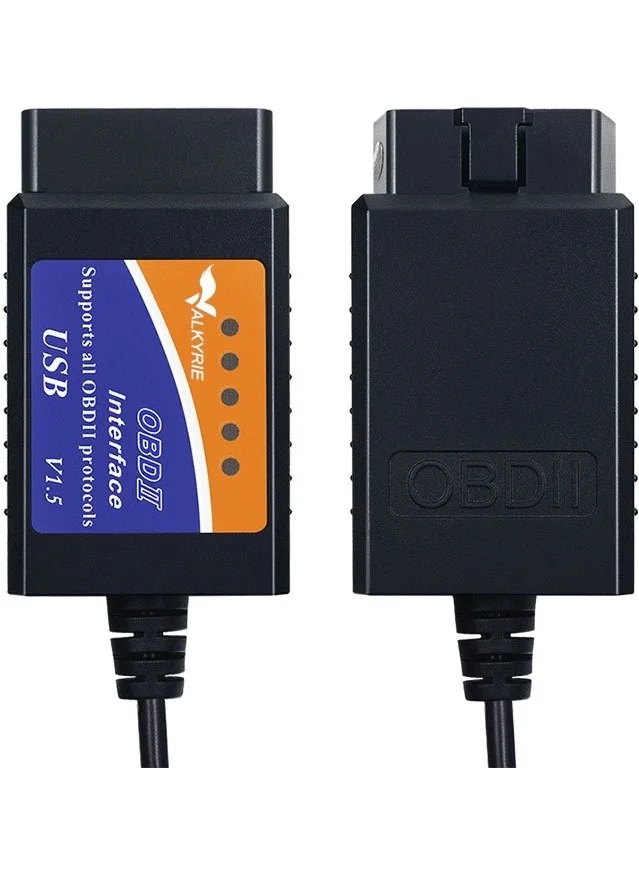

USB V1.5 Car Scanner Diagnostic Tool Obd2

1. Software Version: V1.5

2. Supports all OBD-II protocols

3. User-friendly and easy to learn

4. Supports two platforms - DOS and Windows.

Explanation:

1. is the latest PC based scanning tool. It ships with a range of compatible programs.  Output protocol (connection to laptop) is USB.

 2nd Processor: for

3.OBD-II Software is a free program that allows you to use your PC and a hardware interface to retrieve information from your vehicle's computer.

4. The program is very easy to install: simply extract the files to a folder on your computer's hard drive and you're ready to go. To uninstall the program, simply delete the entire contents of the folder where the program is located.

Functions:

1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2.Clear trouble codes and turn off MIL ("Check Engine" light)

3. View current sensor data, including:

Engine RPM;

Calculated Load Value;Coolant Temperature;Fuel System Status;Vehicle Speed;Short Term Fuel Trim;Long Term Fuel Trim, Intake Manifold Pressure,Timing Advance,Intake Air Temperature,Air Flow Rate,Absolute Throttle Position,Oxygen Sensor Voltages

Features:
1.OBD-II Protocols:
ISO15765-4 (CAN);ISO14230-4 (KWP2000);ISO9141-2;
2. Output Protocol: RS232
Baud rate: 9600 or 38400
Indicator LEDs:OBD Tx/Rx, RS232 Tx/Rx, Power
Operating voltage: 12V, internal protection against short circuits/overvoltages
Nominal idle current: 45 mA
3. Free Software:
1)For GM Mode 22 Scan Tool by Terry
2) OBD Meter for PalmOS and Pocket PC by Dana Peters
3) OBD Logger by Jonathan Senkerik
4)OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)
5) OBD2 Scantool by Ivan Andrewjeski
6) OBDII for ELM322 by David Huffman
7) pyOBD by Donour Sizemore for MacOSX and Linux
8) RDDTC by Pete Calinski
9) Real Scan by Brent Harris
10) ScanTest for Pocket PC by Ivan Ganev aka a-ser
11) wOBD by WDT

4.Available Cars:
Benz 2001/02/03 W203 C200K (ISO)
For BMW X5 2002 (ISO) Chevrolet Aveo (ISO)
Citroen C3 2004 (ISO) Daihatsu YRV 2005 (ISO)
Daihatsu YRV Turbo 2006 (ISO)
Fiat Type 2002 (ISO)
For Ford New Focus 2006 (CAN)
Honda Accord 2006 JDM (ISO)
Honda Accord Euro R 2004 JDM (ISO)
Honda City GD8 (ISO)
For Honda Civic ES 1.6A (ISO)
Honda Integra Type R DC5 JDM (ISO)
For Honda Jazz 1.4M (ISO)
Hyundai Accent 2004 (ISO)
Hyundai Getz 1.3A 2004 (ISO)
Hyundai Getz 1.6M 2004 (ISO)
Hyundai Matrix 2004 (ISO)
Hyundai Santa Fe 2.4A (ISO)
Hyundai Sonata GLS (ISO)
Hyundai Sonata 2005 (ISO)
Hyundai Tuscan FX (ISO)
Kia Carens 2005 (ISO)
Kia Magentis 2005 (ISO)
Kia Rio LS (ISO)
Kia Sorento SUV 2005 (ISO)
Lexus S300 Mazda 2 (CAN)
Mazda 5 (CAN)
Mazda 6 (CAN)
Mazda Premacy 2001 (ISO)
Mazda RX8 (CAN)
Mitsubishi Colt 2003 (ISO)
Mitsubishi Colt Plus 2005 (ISO)
