Color | Black |

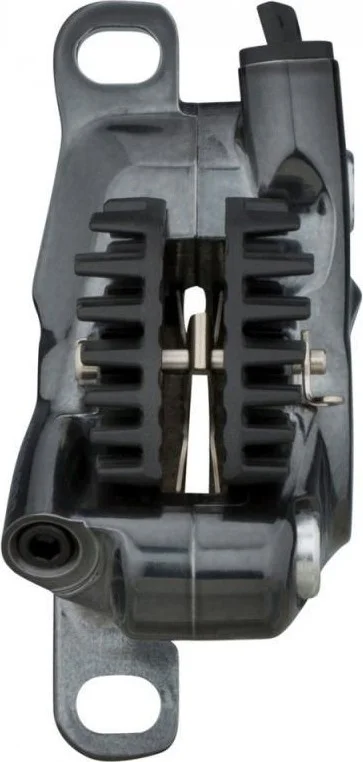

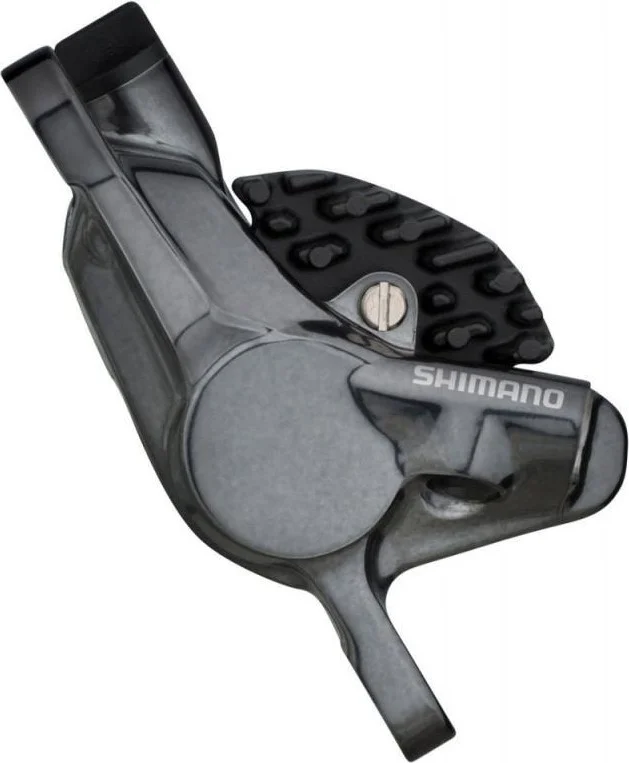

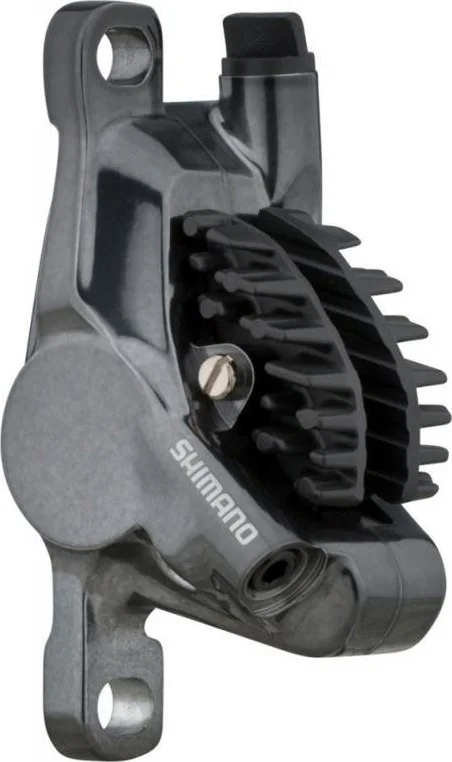

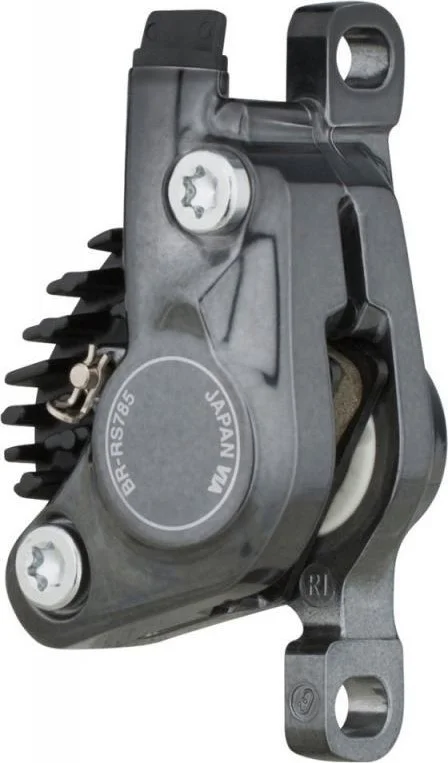

Shimano BR-RS785 brake caliper - Hydraulic braking power for your road bike
Unlike the previous BR-R785, the Shimano brake caliper BR-RS785 has a straight hose connection. As a result, the entire hose routing can be improved. What remains is the innovative Ice technology, which, together with suitable rotors and pads, provides comprehensive heat dissipation and ensures consistent braking performance. In addition, thanks to the one-way air discharge structure, it is very easy to bleed the brake caliper. BR-RS785 works with two ceramic pistons and is assembled according to post-mount standard (IS with adapter).
Application: Road, Cyclocross
Type: hydraulic, 2-piston
Operation: mineral oil
Hose: SM-BH59-J-SS, SM-BH59-JK-SS (not included)
Technical information
Assembly: post assembly
Pistons: 2 pistons
Pads: J02A resin with cooling fins (J03A resin, J04C metal, G02A/G03A resin, G03S metal optional)
Design: 2-piece
Material: aluminum
Hose Connection: straight
Properties
- more braking power with less effort
- simple, clean drain system
- simple hose connection system
- ceramic piston
- can be mounted front and rear
- Can be mounted with adapter
- painted
- steel bolt
technology
One-way air bleed is designed to quickly and easily prevent air from entering the hydraulic system. Shimano has optimized the brake fluid flow path through the system to prevent air bubbles from getting trapped in the system.
One-way oil diverting plus a mineral oil funnel tool provides an easy and clean bleed system.
Ice-tech technology
Brake failure during long periods of uninterrupted operation, e.g. downhill deteriorates braking performance. Shimano introduced brake rotors and pads with Ice-Tech technology to create a cooling technology for consistently high braking performance. The brake rotor has a three-layer stainless steel sandwich structure on the outside around an aluminum core. For example, it radiates heat better and reduces the surface temperature from 400 °C to 300 °C. Brake pads also have cooling fins. The design of the rotor together with cooling fins results in longer service life of the pads, less brake noise, less fade and lower weight.

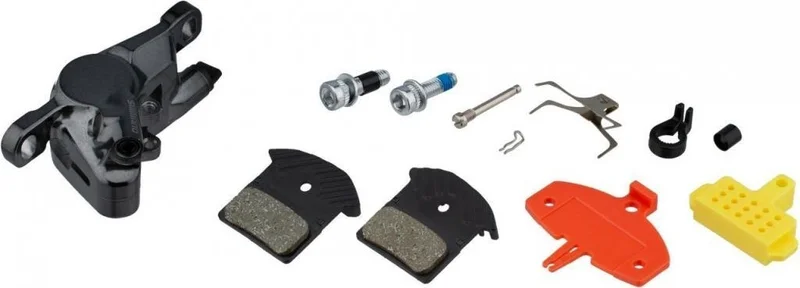

Ingredients:
- 1 x Shimano BR-RS785 brake caliper
- 1 pair Shimano J02A brake pads
- 2 x caliper bolts
- rotor not included
- hose not included.
Weight: 136g
